Product Description

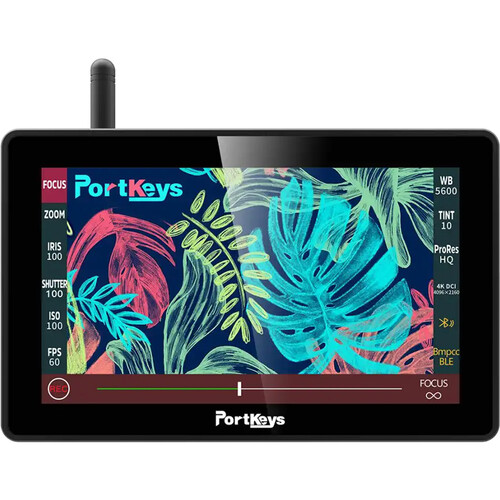

Set your exposure properly and focus accurately when capturing video with the help of the PORTKEYS BM5WR 5.5″ HDMI Touchscreen Monitor. This ultrabright onboard monitor features a wide color gamut, a durable aluminum build, and both HDMI and 3G/SDI video inputs and SDI output. The included wireless control module offers Wi-Fi control for the RED KOMODO and Bluetooth control for BMPCC 6K/6K Pro and 4K cameras. Wired control is available for select Canon, Blackmagic Design, Panasonic, Sony, and ZCAM E2 cameras. The PORTKEYS BM5WR 5.5″ HDMI Touchscreen Monitor with Camera Control maintains the same reliable BM5 clarity, vivid color details, and dynamic touch screen camera control, and it offers touch focus for the KOMODO, the Panasonic BGH1, and the ZCAM E2.

Wired Camera Control

Wired control of select Sony, Canon, Panasonic, Blackmagic Design, and ZCAM E2 cameras

Wired Motor Control

The BM5WR can display the position of the Tilta Nucleus N/M and display the wireless follow focus scale

Touchscreen Control Focus

When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real time without any other tools when using the RED KOMODO, Panasonic BGH1, or the ZCAM E2

2200 cd/m² Superbright Monitor

The BM5WR offers a 2200 cd/m² ultrabright 5.5″ display with excellent color, resolution, contrast, and precise image control

Robust Design

The rugged aluminum alloy shell design is durable and lightweight, weighing only 13.3 oz yet able to withstand heavy daily operations

HDMI In/SDI In/Loop Out

HDMI input and SDI input and loop output ports with the ability to output a superimposed image with 3DLUT and peaking via the SDI output

Color Calibration

Each PORTKEYS BM5WR 5.5″ HDMI Touchscreen Monitor has passed strict hardware color calibration before shipping to ensure the widest color gamut and the most accurate colors

10-Bit (8+2 FRC) Color

A 10-bit color depth for more accurate, richer color reproduction

ARRI False Color Mode

Expose your image using ARRI false color mode and user-defined modes with the ability to freely set the IRE in user-defined mode

New Focus Peaking

The optimized new peaking algorithm can accurately capture subtle facial focus

Precision Waveform

The high-precision fullscreen waveform monitor can accurately capture 1920 x 1080 pixels frame by frame

Image Capture and Image Overlay

Image Capture takes a snapshot of the video feed being sent through SDI or HDMI (combined with a LUT if desired) and saves it to memory; great for shot matching (continuity) or a quick overview of the days’ shots.

In the Box

  • PORTKEYS BM5WR 5.5" HDMI Touchscreen Monitor with Camera Control
  • 4-Pin Aviation to D-Tap Power Cord (39")
  • 4-Pin Aviation to DC Power Cord (16")
  • L-Type Antenna
  • LANC Control Cable (16")
  • USB Type-C Control Cable (16")
  • USB Flash Drive
